gRPC的四种通信方式
2025/6/20大约 4 分钟
gRPC的四种通信方式
四种通信方式
- 简单rpc 一元rpc (Unary RPC)
- 服务端流式RPC (Server Streaming RPC)
- 客户端流式RPC (Client Streaming RPC)
- 双向流RPC (Bi-directional Stream RPC)

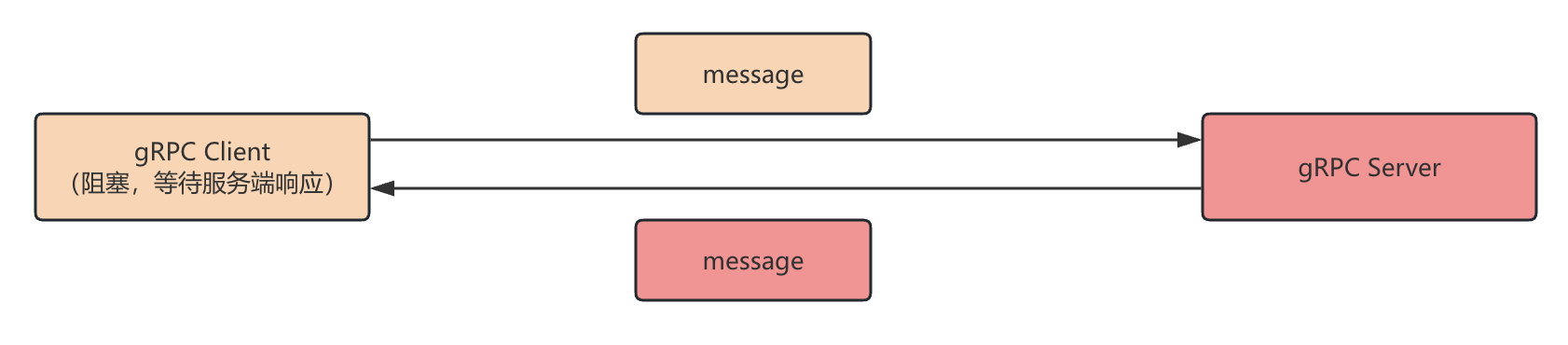

简单RPC(一元RPC)
上一章的grpc服务开发案例实际上就是一元rpc
特点
当client发起调用后，提交数据并且等待服务端响应（开发过程中，主要采用就是一元RPC的这种通信方式）
语法
service HelloService{
rpc hello(HelloRequest) returns (HelloResponse){}
rpc hello1(HelloRequest1) returns (HelloResponse1){}

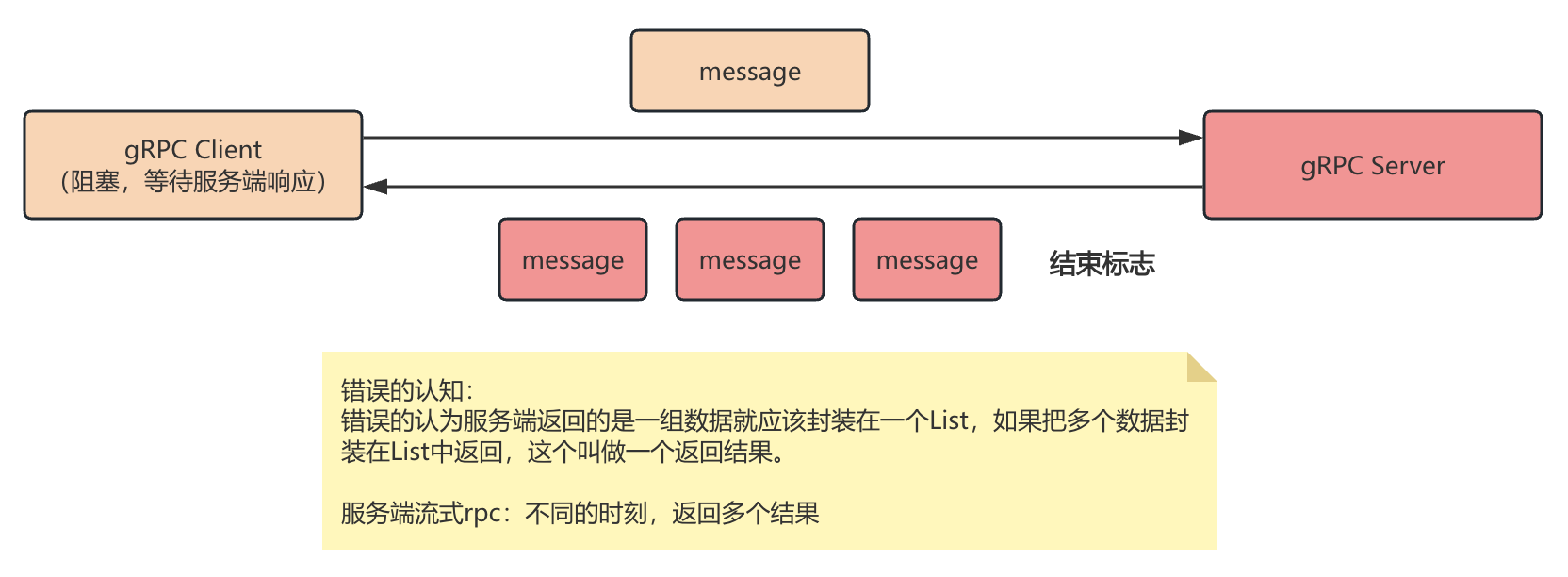

}服务端流式RPC
特点
长链接，一个客户端请求对象，服务端可以回传多个结果对象
使用场景
# 股票标号
# client --------> Server
# <-------
# 某一个时刻的 股票的行情语法
service HelloService{
// 服务端流式RPC
rpc hello(HelloRequest) returns (stream HelloResponse){}
// 一元rpc
rpc hello1(HelloRequest1) returns (HelloResponse1){}
}关键代码
服务端
public void c2ss(HelloProto.HelloRequest request, StreamObserver<HelloProto.HelloResponse> responseObserver){
// 1.接受client的请求参数
String name = request.getName();
// 2.做业务处理
System.out.println("name = " + name);
// 3.根据业务处理的结果，提供响应
// 循环模拟多个结果
for (int i = 0; i < 9; i++) {
HelloProto.HelloResponse.Builder builder = HelloProto.HelloResponse.newBuilder();
builder.setResult("处理的结果 " + i);
HelloProto.HelloResponse helloResponse = builder.build();
responseObserver.onNext(helloResponse);
try {
Thread.sleep(1000);
} catch (InterruptedException e) {
throw new RuntimeException(e);
}
}
responseObserver.onCompleted();
}客户端-阻塞式监听处理服务端流式RPC
public class GRPCClient {
public static void main(String[] args) {
ManagedChannel managedChannel = ManagedChannelBuilder.forAddress("localhost", 9000).usePlaintext().build();
try {
HelloServiceGrpc.HelloServiceBlockingStub helloService = HelloServiceGrpc.newBlockingStub(managedChannel);
HelloProto.HelloRequest.Builder builder = HelloProto.HelloRequest.newBuilder();
builder.setName("rose");
HelloProto.HelloRequest helloRequest = builder.build();
// 响应的是一个迭代器
Iterator<HelloProto.HelloResponse> helloResponseIterator = helloService.c2ss(helloRequest);
while (helloResponseIterator.hasNext()) {
HelloProto.HelloResponse helloResponse = helloResponseIterator.next();
System.out.println("helloResponse.getResult() = " + helloResponse.getResult());
}
} catch (Exception e) {
e.printStackTrace();
}
finally {
managedChannel.shutdown();
}
}
}客户端 - 异步方式监听处理服务端流式RPC
public class GRPCClient {
public static void main(String[] args) {
ManagedChannel managedChannel = ManagedChannelBuilder.forAddress("localhost", 9000).usePlaintext().build();
try {
HelloServiceGrpc.HelloServiceStub helloService = HelloServiceGrpc.newStub(managedChannel);
HelloProto.HelloRequest.Builder builder = HelloProto.HelloRequest.newBuilder();
builder.setName("jack");
HelloProto.HelloRequest helloRequest = builder.build();
helloService.c2ss(helloRequest, new StreamObserver<HelloProto.HelloResponse>() {
@Override
public void onNext(HelloProto.HelloResponse value) {
// 服务端 响应了一个消息后，需要立即处理的话。把代码写在这个方法中。
System.out.println("服务端每一次响应的信息 " + value.getResult());
}
@Override
public void onError(Throwable t) {
}
@Override
public void onCompleted() {
// 需要把服务端响应的所有数据拿到后，在进行业务处理。
System.out.println("服务端响应结束 后续可以根据需要 在这里统一处理服务端响应的所有内容");
}
});
// 重点：一定要阻塞等待，否则会直接就shutdown了
managedChannel.awaitTermination(12, TimeUnit.SECONDS);
} catch (Exception e) {
e.printStackTrace();
} finally {
managedChannel.shutdown();
}
}

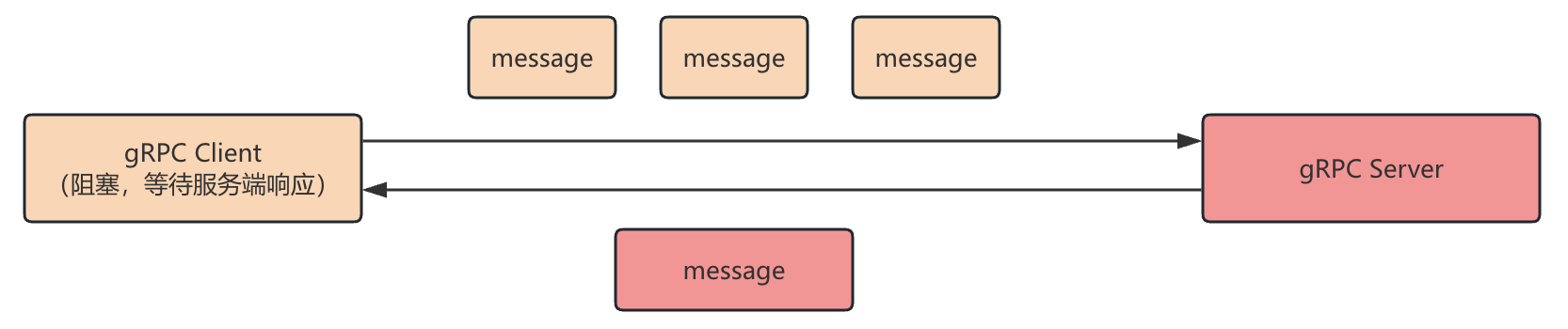

}客户端流式RPC
特点
客户端发送多个请求对象，服务端只返回一个结果
使用场景
- IOT(物联网、传感器) 向服务端发送数据
语法
rpc cs2s(stream HelloRequest) returns (HelloResponse){}关键代码
api
rpc cs2s(stream HelloRequest) returns (HelloResponse){}服务端
public StreamObserver<HelloProto.HelloRequest> cs2s(StreamObserver<HelloProto.HelloResponse> responseObserver) {
return new StreamObserver<HelloProto.HelloRequest>() {
@Override
public void onNext(HelloProto.HelloRequest value) {
System.out.println("接受到了client发送一条消息 " + value.getName());
}
@Override
public void onError(Throwable t) {
}
@Override
public void onCompleted() {
System.out.println("client的所有消息 都发送到了 服务端 ....");
//提供响应：响应的目的：当接受了全部client提交的信息，并处理后，提供相应
HelloProto.HelloResponse.Builder builder = HelloProto.HelloResponse.newBuilder();
builder.setResult("this is result");
HelloProto.HelloResponse helloResponse = builder.build();
responseObserver.onNext(helloResponse);
responseObserver.onCompleted();
}
};
}客户端
public class GRPCClient {
public static void main(String[] args) {
ManagedChannel managedChannel = ManagedChannelBuilder.forAddress("localhost", 9000).usePlaintext().build();
try {
HelloServiceGrpc.HelloServiceStub helloService = HelloServiceGrpc.newStub(managedChannel);
StreamObserver<HelloProto.HelloRequest> helloRequestStreamObserver = helloService.cs2s(new StreamObserver<HelloProto.HelloResponse>() {
@Override
public void onNext(HelloProto.HelloResponse value) {
// 监控响应
System.out.println("服务端 响应 数据内容为 " + value.getResult());
}
@Override
public void onError(Throwable t) {
}
@Override
public void onCompleted() {
System.out.println("服务端响应结束 ... ");
}
});
//客户端 发送数据 到服务端 多条数据 ，不定时...
for (int i = 0; i < 10; i++) {
HelloProto.HelloRequest.Builder builder = HelloProto.HelloRequest.newBuilder();
builder.setName("sunshuai " + i);
HelloProto.HelloRequest helloRequest = builder.build();
helloRequestStreamObserver.onNext(helloRequest);
Thread.sleep(1000);
}
helloRequestStreamObserver.onCompleted();
managedChannel.awaitTermination(12, TimeUnit.SECONDS);
} catch (Exception e) {
e.printStackTrace();
} finally {
managedChannel.shutdown();
}
}
}双向流RPC
特点
- 客户端可以发送多个请求消息，服务端响应多个响应消息
使用场景
- 聊天室
关键代码
api
rpc cs2ss(stream HelloRequest) returns (stream HelloResponse){}服务端
public StreamObserver<HelloProto.HelloRequest> cs2ss(StreamObserver<HelloProto.HelloResponse> responseObserver) {
return new StreamObserver<HelloProto.HelloRequest>() {
@Override
public void onNext(HelloProto.HelloRequest value) {
System.out.println("接受到client 提交的消息 "+value.getName());
responseObserver.onNext(HelloProto.HelloResponse.newBuilder().setResult("response "+value.getName()+" result ").build());
}
@Override
public void onError(Throwable t) {
}
@Override
public void onCompleted() {
System.out.println("接受到了所有的请求消息 ... ");
responseObserver.onCompleted();
}
};
}客户端
public class GRPCClient {
public static void main(String[] args) {
ManagedChannel managedChannel = ManagedChannelBuilder.forAddress("localhost", 9000).usePlaintext().build();
try {
HelloServiceGrpc.HelloServiceStub helloService = HelloServiceGrpc.newStub(managedChannel);
StreamObserver<HelloProto.HelloRequest> helloRequestStreamObserver = helloService.cs2ss(new StreamObserver<HelloProto.HelloResponse>() {
@Override
public void onNext(HelloProto.HelloResponse value) {
System.out.println("响应的结果 "+value.getResult());
}
@Override
public void onError(Throwable t) {
}
@Override
public void onCompleted() {
System.out.println("响应全部结束...");
}
});
for (int i = 0; i < 10; i++) {
helloRequestStreamObserver.onNext(HelloProto.HelloRequest.newBuilder().setName("sunshuai " + i).build());
}
helloRequestStreamObserver.onCompleted();
managedChannel.awaitTermination(12, TimeUnit.SECONDS);
} catch (Exception e) {
e.printStackTrace();
} finally {
managedChannel.shutdown();
}
}
}
