gRPC与Springboot整合

整合思想

• grpc-server

2. grpc-client

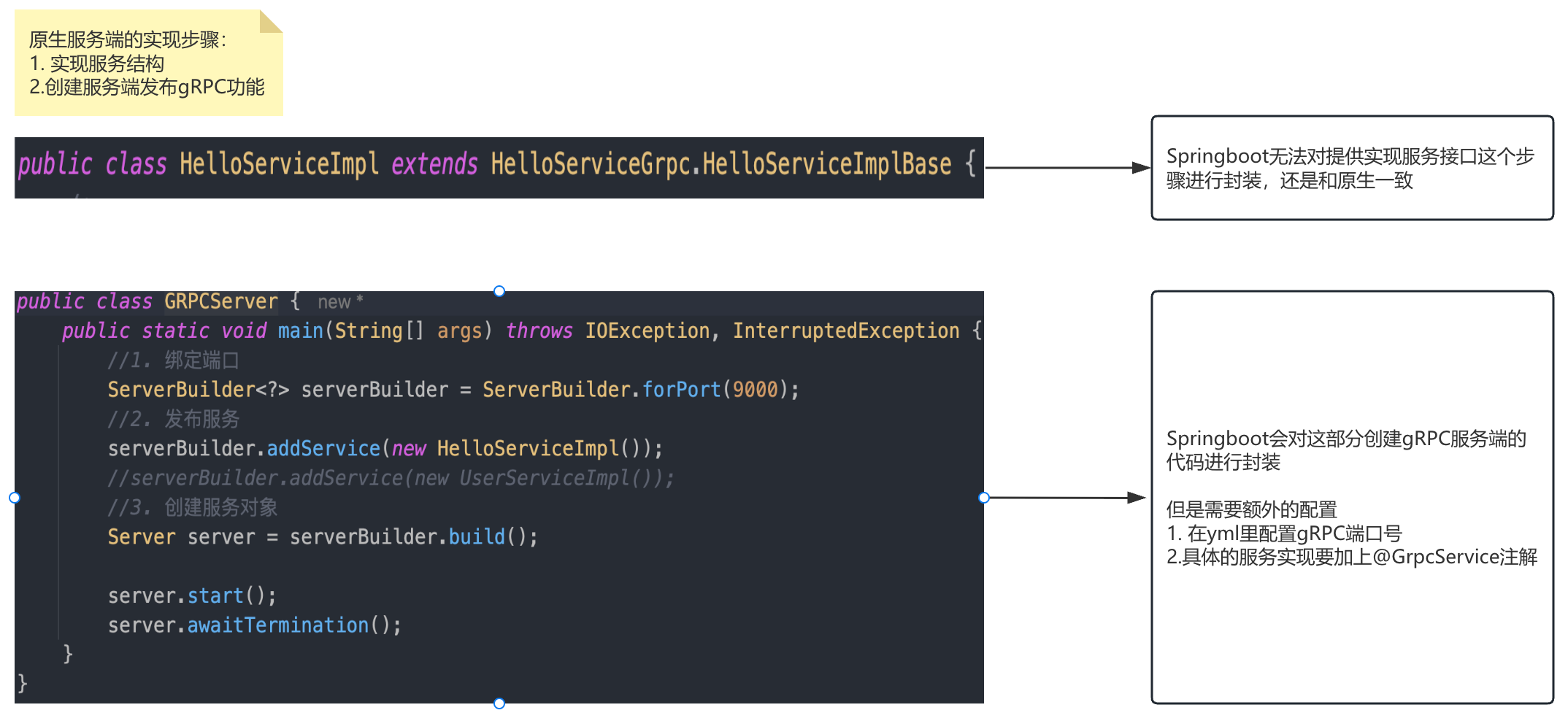

整合中对服务端的封装

image-20250622225107775

搭建开发环境

• 搭建SpringBoot的开发环境
• 引入与Grpc相关的内容

<dependency>
      <groupId>com.suns</groupId>
      <artifactId>rpc-grpc-api</artifactId>
      <version>1.0-SNAPSHOT</version>
 </dependency>

<dependency>
    <groupId>net.devh</groupId>
    <artifactId>grpc-server-spring-boot-starter</artifactId>
    <version>2.14.0.RELEASE</version>
</dependency>

开发服务

服务实现，每一个服务实现都需要加@GrpcService注解

@GrpcService
public class HelloServiceImpl extends HelloServiceGrpc.HelloServiceImplBase {
    @Override
    public void hello(HelloProto.HelloRequest request, StreamObserver<HelloProto.HelloResponse> responseObserver) {
        String name = request.getName();
        System.out.println("name is " + name);

        responseObserver.onNext(HelloProto.HelloResponse.newBuilder().setResult("this is result").build());
        responseObserver.onCompleted();
    }
}

application.yml配置

spring:
  main:
    # 如果只使用gRPC，可以关闭tomcat
    web-application-type: none

grpc:
  server:
    port: 9000

整合中对客户端的封装

环境搭建

 <dependency>
    <groupId>net.devh</groupId>
    <artifactId>grpc-client-spring-boot-starter</artifactId>
    <version>2.14.0.RELEASE</version>
 </dependency>

application.yml

grpc:
  client:
    grpc-server:
      address: 'static://127.0.0.1:9000'
      negotiation-type: plaintext

注入stub

@Service
public class HelloService {

  @GrpcClient("grpc-server")
  private HelloServiceGrpc.HelloServiceBlockingStub stub;

}
